使用Canvas绘制罗盘时钟
作者：朋也
日期：2021-12-24
类别：javascript学习笔记
版权声明：自由转载-非商用-非衍生-保持署名（创意共享3.0许可证）
惯例先上效果

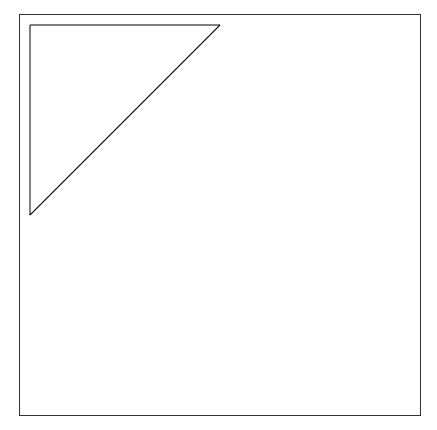

绘制线条
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
// 开始路径绘制
ctx.beginPath();
// 将画笔移动到原点
ctx.moveTo(10, 10);
// 绘制一条线
ctx.lineTo(200,10);
// 再绘制一条线
ctx.lineTo(10,200);
// 关闭路径
ctx.closePath();
// 绘制路径
ctx.stroke();
</script>
效果：

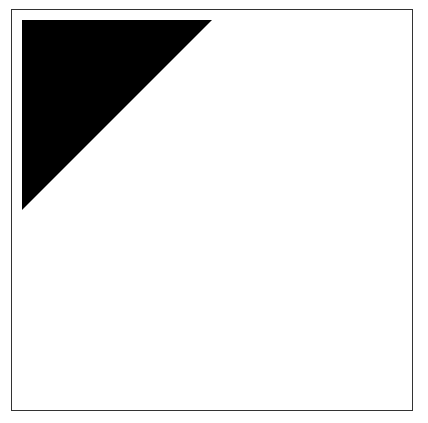

如果要绘制填充的话，可以使用fill()方法，如下：
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
// 开始路径绘制
ctx.beginPath();
// 将画笔移动到原点
ctx.moveTo(10, 10);
// 绘制一条线
ctx.lineTo(200,10);
// 再绘制一条线
ctx.lineTo(10,200);
// 关闭路径
ctx.closePath();
// 绘制路径
ctx.fill();
</script>
效果：

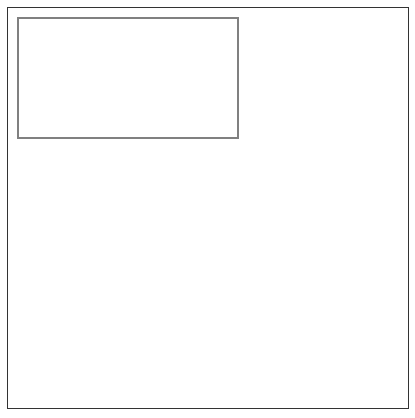

绘制矩形
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.beginPath();
ctx.rect(10, 10, 220, 120);
ctx.closePath();
ctx.stroke();
</script>
效果：

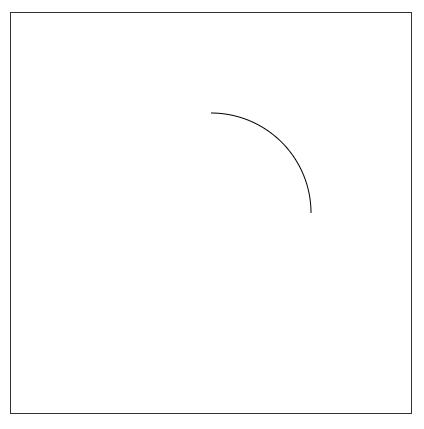

绘制圆形
使用 context.arc(x,y,r,sAngle,eAngle,counterclockwise);来绘制圆
参数分别是 圆心 x,y, 半径 r ,起始角度 sAngle, 结束角度 eAngle, 是否逆时针(默认是false)
值得注意的是，起始角度与结束角度是固定的，不管是顺时针还是逆时针，都是右0或2，下1/2，左1，上3/2
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.beginPath();
// 绘制一个圆点在（200，200）半径：100，从0度顺时针绘制到3/2*PI的圆弧
ctx.arc(200, 200, 100, 0, 3/2 * Math.PI, false);
// 如果关闭路径，绘制后就是一个封闭的图形
// ctx.closePath();
// 同样的，fill() 表示填充
ctx.stroke();
</script>

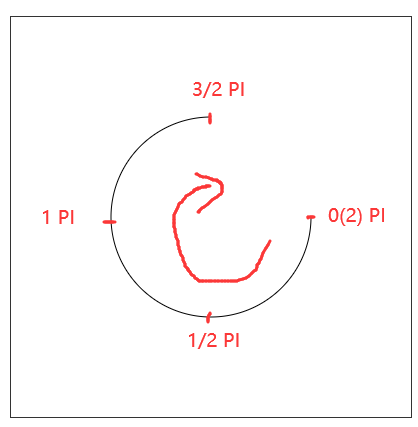

效果：
换成逆时针画
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.beginPath();
ctx.arc(200, 200, 100, 0, 3/2 * Math.PI, true);
ctx.stroke();
</script>
效果：
绘制文字
使用 fillText(text, x, y) 函数绘制文字
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.fillText("hello", 100, 100);
</script>
效果：
对齐&样式
canvas绘制时，可以像css那样设置对齐方式和线条颜色大小等
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.fillStyle = 'red';
ctx.beginPath();
ctx.moveTo(10,10);
ctx.lineTo(10, 200);
ctx.lineTo(200, 10);
ctx.closePath();
ctx.fill();
ctx.strokeStyle = 'blue';
ctx.lineWidth = 4;
ctx.beginPath();
ctx.arc(220, 220, 50, 0, Math.PI*2);
ctx.closePath();
ctx.stroke();
ctx.fillStyle = "green";
ctx.font = "20px Arial";
ctx.textBaseline = 'middle'; // 垂直方向
ctx.textAlign = 'center'; // 水平方向
ctx.fillText("Hello World", 330, 330);
</script>

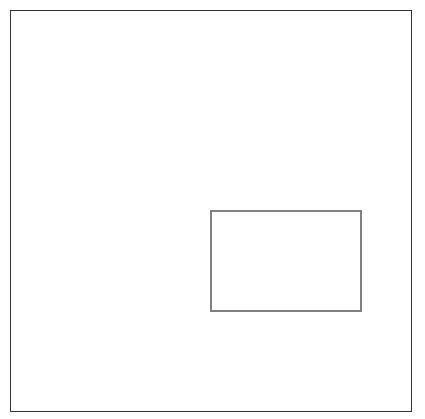

位移
canvas绘制原点是左上角(0,0)，可以通过 translate(x,y) 将原点移动到指定位置
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
// 将原点移动到画布中心
ctx.translate(canvas.width/2, canvas.height/2);
ctx.beginPath();
// 此时起始点就是画布中心了
ctx.rect(0, 0, 150, 100);
ctx.closePath();
ctx.stroke();
</script>
效果：

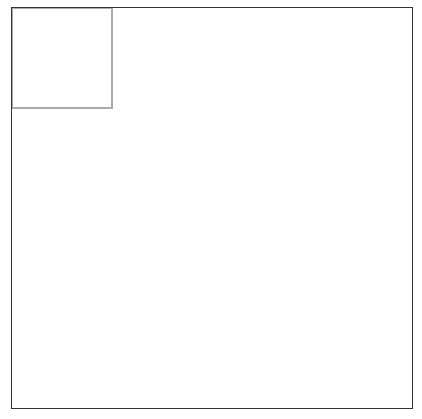

缩放
使用 scale(x,y) 函数缩放
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.scale(0.5, 0.5);
ctx.beginPath();
ctx.rect(0, 0, 200, 200);
ctx.closePath();
ctx.stroke();
</script>
效果
画布是400x400的，代码画的是一个200x200大小的矩形，但在画之前先将画布缩小了一半，所以绘制的矩形也变成了100x100的了

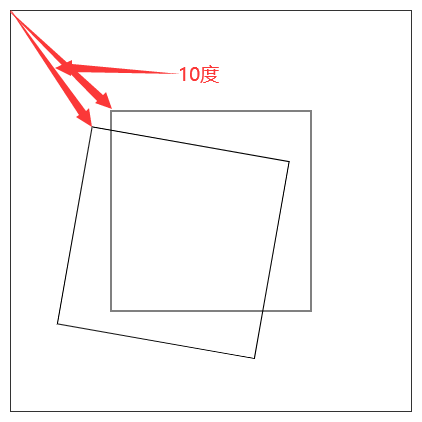

旋转
旋转画布的方法是使用 rotate(deg) 函数
旋转是参数是弧度，所以需要将角度转换成弧度，转换方法是 deg * Math.PI / 180
比如要旋转10度，那么可以使用 rotate(10 * Math.PI / 180)
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.beginPath();
ctx.rect(100, 100, 200, 200);
ctx.closePath();
ctx.stroke();
ctx.rotate(10 * Math.PI / 180);
ctx.beginPath();
ctx.rect(100, 100, 200, 200);
ctx.closePath();
ctx.stroke();
</script>
效果：

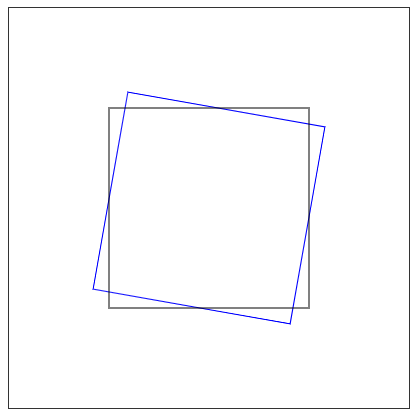

保存画布状态与恢复
上面列举的位移，缩放，旋转都是对画布进行操作，直接会对后面再绘制的图形有影响
比如平移完后绘制完，还要再平移回初始的状态，这样才不会对后面绘制有影响，旋转，缩放也是一样，这样操作就会很麻烦
可以在使用位移，缩放，旋转这些操作之前，先保存一下画布的状态，绘制完后，再恢复到保存的状态，就不会对后面的绘制有影响了
<canvas width="400" height="400" id="canvas" style="border:1px solid #333;"></canvas>
<script>
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.save();
ctx.strokeStyle="blue";
ctx.translate(200, 200);
ctx.rotate(10 * Math.PI / 180);
ctx.beginPath();
ctx.rect(-100, -100, 200, 200);
ctx.closePath();
ctx.stroke();
ctx.restore();
ctx.save();
ctx.beginPath();
ctx.rect(100, 100, 200, 200);
ctx.closePath();
ctx.stroke();
ctx.restore();
</script>
效果：
罗盘钟
有了上面这些知识就可以写出来罗盘钟了，完整代码如下
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
body, html {height: 100%;}
</style>
</head>
<body>
<canvas id="clock" width="800" height="800"></canvas>
<script>
(function () {
var canvas = document.getElementById('clock');
var ctx = canvas.getContext('2d');
var cwidth = canvas.width,cheight = canvas.height;
var init = false;
var seconds = ["零秒", "一秒", "二秒", "三秒", "四秒", "五秒", "六秒", "七秒", "八秒", "九秒", "十秒", "十一秒", "十二秒", "十三秒", "十四秒", "十五秒", "十六秒", "十七秒", "十八秒", "十九秒", "二十秒", "二十一秒", "二十二秒", "二十三秒", "二十四秒", "二十五秒", "二十六秒", "二十七秒", "二十八秒", "二十九秒", "三十秒", "三十一秒", "三十二秒", "三十三秒", "三十四秒", "三十五秒", "三十六秒", "三十七秒", "三十八秒", "三十九秒", "四十秒", "四十一秒", "四十二秒", "四十三秒", "四十四秒", "四十五秒", "四十六秒", "四十七秒", "四十八秒", "四十九秒", "五十秒", "五十一秒", "五十二秒", "五十三秒", "五十四秒", "五十五秒", "五十六秒", "五十七秒", "五十八秒", "五十九秒"];
var minutes = ["零分", "一分", "二分", "三分", "四分", "五分", "六分", "七分", "八分", "九分", "十分", "十一分", "十二分", "十三分", "十四分", "十五分", "十六分", "十七分", "十八分", "十九分", "二十分", "二十一分", "二十二分", "二十三分", "二十四分", "二十五分", "二十六分", "二十七分", "二十八分", "二十九分", "三十分", "三十一分", "三十二分", "三十三分", "三十四分", "三十五分", "三十六分", "三十七分", "三十八分", "三十九分", "四十分", "四十一分", "四十二分", "四十三分", "四十四分", "四十五分", "四十六分", "四十七分", "四十八分", "四十九分", "五十分", "五十一分", "五十二分", "五十三分", "五十四分", "五十五分", "五十六分", "五十七分", "五十八分", "五十九分"];
let hours = ["十二时", "一时", "二时", "三时", "四时", "五时", "六时", "七时", "八时", "九时", "十时", "十一时"]
let apm = ["上午", "下午"];
let weeks = ["星期日", "星期一", "星期二", "星期三", "星期四", "星期五", "星期六"];
let days = ["一号", "二号", "三号", "四号", "五号", "六号", "七号", "八号", "九号", "十号", "十一号", "十二号", "十三号", "十四号", "十五号", "十六号", "十七号", "十八号", "十九号", "二十号", "二十一号", "二十二号", "二十三号", "二十四号", "二十五号", "二十六号", "二十七号", "二十八号", "二十九号", "三十号", "三十一号"];
let months = ["一月", "二月", "三月", "四月", "五月", "六月", "七月", "八月", "九月", "十月", "十一月", "十二月"];
var secondoffset = 0, minuteoffset = 0, houroffset = 0, apoffset = 0, weekoffset = 0, dayoffset = 0, monthoffset = 0;
var lastSecond = 0, lastMinute = 0, lastHour = 0, lastAp = 0, lastWeek = 0, lastDay = 0, lastMonth = 0;
var lastUpdateTime = 0, fps = 0, lastfps = 0, lastFpsTime = 0;
function getTime() {
var now = new Date();
var second = now.getSeconds();
var minute = now.getMinutes();
var hour = now.getHours();
var ap = hour >= 12 ? 1 : 0;
var week = now.getDay();
var day = now.getDate();
var month = now.getMonth();
var year = now.getFullYear() + "年";
hour = hour >= 12 ? hour - 12 : hour;
return {
second: second,
minute: minute,
hour: hour,
ap: ap,
week: week,
day: day - 1,
month: month,
year: year
}
}
function drawSecond(offset) {
var radius = 350;
var deg = 360 / seconds.length;
var index = 0;
for (var i = 0; i < seconds.length; i++) {
index = lastSecond + i;
if (index >= seconds.length) {
index -= seconds.length;
}
ctx.save();
var x = Math.cos((deg * i + offset) * Math.PI / 180) * radius + cwidth/2;
var y = Math.sin((deg * i + offset) * Math.PI / 180) * radius + cheight/2;
ctx.translate(x, y)
ctx.rotate((deg * i + offset) * Math.PI / 180);
ctx.fillText(seconds[index], 0, 0);
ctx.restore();
}
}
function drawMinute(offset) {
var radius = 300;
var deg = 360 / minutes.length;
var index = 0;
for (var i = 0; i < minutes.length; i++) {
index = lastMinute + i;
if (index >= minutes.length) {
index -= minutes.length;
}
ctx.save();
var x = Math.cos((deg * i + offset) * Math.PI / 180) * radius + cwidth/2;
var y = Math.sin((deg * i + offset) * Math.PI / 180) * radius + cheight/2;
ctx.translate(x, y)
ctx.rotate((deg * i + offset) * Math.PI / 180);
ctx.fillText(minutes[index], 0, 0);
ctx.restore();
}
}
function drawHour(offset) {
var radius = 260;
var deg = 360 / hours.length;
var index = 0;
for (var i = 0; i < hours.length; i++) {
index = lastHour + i;
if (index >= hours.length) {
index -= hours.length;
}
ctx.save();
var x = Math.cos((deg * i + offset) * Math.PI / 180) * radius + cwidth/2;
var y = Math.sin((deg * i + offset) * Math.PI / 180) * radius + cheight/2;
ctx.translate(x, y)
ctx.rotate((deg * i + offset) * Math.PI / 180);
ctx.fillText(hours[index], 0, 0);
ctx.restore();
}
}
function drawAp(offset) {
var radius = 220;
var deg = 360 / apm.length;
var index = 0;
for (var i = 0; i < apm.length; i++) {
index = lastAp + i;
if (index >= apm.length) {
index -= apm.length;
}
ctx.save();
var x = Math.cos((deg * i + offset) * Math.PI / 180) * radius + cwidth/2;
var y = Math.sin((deg * i + offset) * Math.PI / 180) * radius + cheight/2;
ctx.translate(x, y)
ctx.rotate((deg * i + offset) * Math.PI / 180);
ctx.fillText(apm[index], 0, 0);
ctx.restore();
}
}
function drawWeek(offset) {
var radius = 180;
var deg = 360 / weeks.length;
var index = 0;
for (var i = 0; i < weeks.length; i++) {
index = lastWeek + i;
if (index >= weeks.length) {
index -= weeks.length;
}
ctx.save();
var x = Math.cos((deg * i + offset) * Math.PI / 180) * radius + cwidth/2;
var y = Math.sin((deg * i + offset) * Math.PI / 180) * radius + cheight/2;
ctx.translate(x, y)
ctx.rotate((deg * i + offset) * Math.PI / 180);
ctx.fillText(weeks[index], 0, 0);
ctx.restore();
}
}
function drawDay(offset) {
var radius = 130;
var deg = 360 / days.length;
var index = 0;
for (var i = 0; i < days.length; i++) {
index = lastDay + i;
if (index >= days.length) {
index -= days.length;
}
ctx.save();
var x = Math.cos((deg * i + offset) * Math.PI / 180) * radius + cwidth/2;
var y = Math.sin((deg * i + offset) * Math.PI / 180) * radius + cheight/2;
ctx.translate(x, y)
ctx.rotate((deg * i + offset) * Math.PI / 180);
ctx.fillText(days[index], 0, 0);
ctx.restore();
}
}
function drawMonth(offset) {
var radius = 80;
var deg = 360 / months.length;
var index = 0;
for (var i = 0; i < months.length; i++) {
index = lastMonth + i;
if (index >= months.length) {
index -= months.length;
}
ctx.save();
var x = Math.cos((deg * i + offset) * Math.PI / 180) * radius + cwidth/2;
var y = Math.sin((deg * i + offset) * Math.PI / 180) * radius + cheight/2;
ctx.translate(x, y)
ctx.rotate((deg * i + offset) * Math.PI / 180);
ctx.fillText(months[index], 0, 0);
ctx.restore();
}
}
function drawTime() {
var data = getTime();
var hour = data.hour;
var minute = data.minute;
var second = data.second;
var time = (hour > 9 ? hour : "0" + hour) + ":" + (minute > 9 ? minute : "0" + minute) + ":" + (second > 9 ? second : "0" + second);
ctx.fillText(time, 20, 20);
}
function drawYear() {
var data = getTime();
var year = data.year;
ctx.fillText(year, cwidth/2, cheight/2);
}
function drawFps() {
fps = calcFps();
if (lastFpsTime >= 30) {
lastfps = fps;
lastFpsTime = 0;
}
ctx.fillText("FPS: " + lastfps, cwidth-30, 20);
}
function drawLine() {
ctx.lineWidth = 1;
ctx.strokeStyle = "#bbb";
ctx.beginPath();
ctx.moveTo(30, cheight/2);
ctx.lineTo(cwidth-30, cheight/2);
ctx.closePath();
ctx.stroke();
ctx.lineWidth = 1;
ctx.strokeStyle = "#bbb";
ctx.beginPath();
ctx.moveTo(cwidth/2, 30);
ctx.lineTo(cwidth/2, cheight-30);
ctx.closePath();
ctx.stroke();
}
function render(secondoffset, minuteoffset, houroffset, apoffset, weekoffset, dayoffset, monthoffset) {
ctx.clearRect(0, 0, cwidth, cheight);
ctx.textBaseline = 'middle';
ctx.textAlign = 'center';
drawLine();
drawTime();
drawYear();
drawSecond(secondoffset);
drawMinute(minuteoffset);
drawHour(houroffset);
drawAp(apoffset);
drawWeek(weekoffset);
drawDay(dayoffset);
drawMonth(monthoffset);
drawFps();
}
function calcFps() {
let now = Date.now();
let fps = (1000/(now - lastUpdateTime)).toFixed();
lastUpdateTime = now;
return fps;
}
function update() {
lastFpsTime++;
var data = getTime();
var currentSecond = data.second;
var currentMinute = data.minute;
var currentHour = data.hour;
var currentAp = data.ap;
var currentWeek = data.week;
var currentDay = data.day;
var currentMonth = data.month;
var currentYear = data.year;
if (currentSecond != lastSecond) {
secondoffset -= 360 / seconds.length / 60 * 2;
if (secondoffset < -360 / seconds.length) {
lastSecond = currentSecond;
secondoffset = 0;
}
}
if (currentMinute != lastMinute) {
minuteoffset -= 360 / minutes.length / 60 * 2;
if (minuteoffset < -360 / minutes.length) {
lastMinute = currentMinute;
minuteoffset = 0;
}
}
if (currentHour != lastHour) {
houroffset -= 360 / hours.length / 60 * 2;
if (houroffset < -360 / hours.length) {
lastHour = currentHour;
houroffset = 0;
}
}
if (currentAp != lastAp) {
apoffset -= 360 / apm.length / 60 * 2;
if (apoffset < -360 / apm.length) {
lastAp = currentAp;
apoffset = 0;
}
}
if (currentWeek != lastWeek) {
weekoffset -= 360 / weeks.length / 60 * 2;
if (weekoffset < -360 / weeks.length) {
lastWeek = currentWeek;
weekoffset = 0;
}
}
if (currentDay != lastDay) {
dayoffset -= 360 / days.length / 60 * 2;
if (dayoffset < -360 / days.length) {
lastDay = currentDay;
dayoffset = 0;
}
}
if (currentMonth != lastMonth) {
monthoffset -= 360 / months.length / 60 * 2;
if (monthoffset < -360 / months.length) {
lastMonth = currentMonth;
monthoffset = 0;
}
}
render(secondoffset, minuteoffset, houroffset, apoffset, weekoffset, dayoffset, monthoffset);
requestAnimationFrame(update);
}
window.requestAnimationFrame = window.requestAnimationFrame
|| window.mozRequestAnimationFrame
|| window.webkitRequestAnimationFrame
|| window.msRequestAnimationFrame
|| function (callback) {
setTimeout(callback, 1000 / 60);
};
update();
})();
</script>
</body>
</html>
