Java GUI 布局

作者：朋也
日期：2021-10-21
类别：java学习笔记

版权声明：自由转载-非商用-非衍生-保持署名（创意共享3.0许可证）

FlowLayout
BorderLayout
GridLayout
CardLayout
GridBagLayout

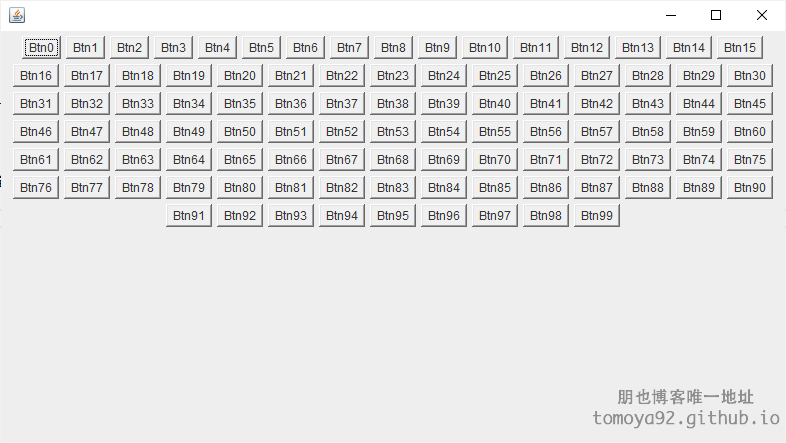

FlowLayout

流式布局

添加的组件从指定方向开始依次添加，当到达一行的最大宽度时，会自动换行，继续依次添加

public class FlowLayoutTest {

    public static void main(String[] args) {
        JFrame frame = new JFrame("Window Title");

        // 设定窗口显示在屏幕正中间
        Dimension dimension = Toolkit.getDefaultToolkit().getScreenSize();
        double screenWidth = dimension.getWidth(), screenHeight = dimension.getHeight();
        int width = 800, height = width * 9 / 16;
        frame.setBounds((int) (screenWidth - width) / 2, (int) (screenHeight - height) / 2, width, height);

        frame.setLayout(new FlowLayout(FlowLayout.LEFT, 4, 4));
        for (int i = 0; i < 100; i++) {
            frame.add(new Button("Btn" + i));
        }

        frame.setVisible(true);

        frame.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
    }
}

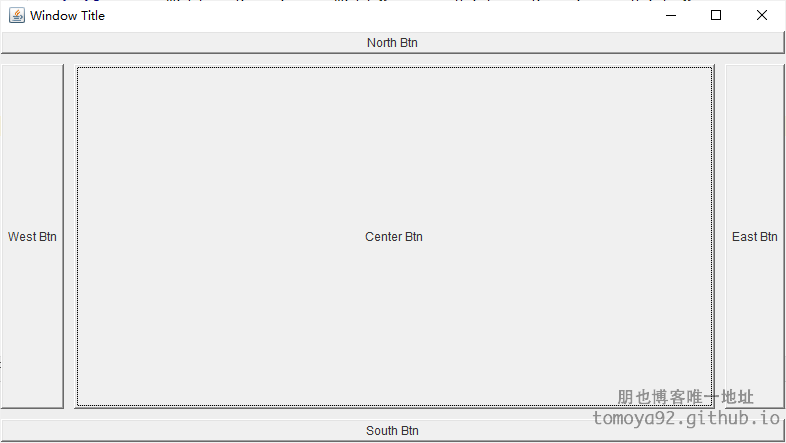

BorderLayout

边界布局

分为上下左右中五个区域

public class BorderLayoutTest {

    public static void main(String[] args) {
        JFrame frame = new JFrame("Window Title");

        // 设定窗口显示在屏幕正中间
        Dimension dimension = Toolkit.getDefaultToolkit().getScreenSize();
        double screenWidth = dimension.getWidth(), screenHeight = dimension.getHeight();
        int width = 800, height = width * 9 / 16;
        frame.setBounds((int) (screenWidth - width) / 2, (int) (screenHeight - height) / 2, width, height);

        frame.setLayout(new BorderLayout(10, 10));

        frame.add(new Button("North Btn"), BorderLayout.NORTH);
        frame.add(new Button("South Btn"), BorderLayout.SOUTH);
        frame.add(new Button("Center Btn"), BorderLayout.CENTER);
        frame.add(new Button("East Btn"), BorderLayout.EAST);
        frame.add(new Button("West Btn"), BorderLayout.WEST);

        frame.setVisible(true);

        frame.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
    }
}

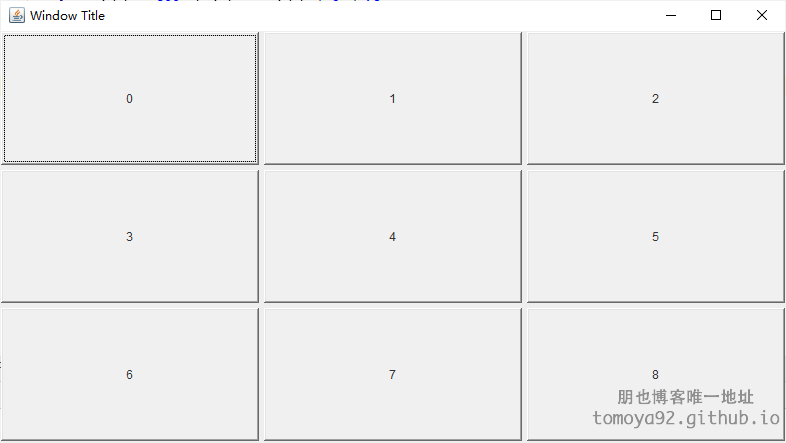

GridLayout

网格布局

给父窗口添加布局时，指定好行，列，与间距，后面添加的组件都会按照顺序依次的添加到对应的网格里去

public class GridLayoutTest {

    public static void main(String[] args) {
        JFrame frame = new JFrame("Window Title");

        // 设定窗口显示在屏幕正中间
        Dimension dimension = Toolkit.getDefaultToolkit().getScreenSize();
        double screenWidth = dimension.getWidth(), screenHeight = dimension.getHeight();
        int width = 800, height = width * 9 / 16;
        frame.setBounds((int) (screenWidth - width) / 2, (int) (screenHeight - height) / 2, width, height);

        frame.setLayout(new GridLayout(3, 3, 5, 5));
        for (int i = 0; i < 9; i++) {
            frame.add(new Button("" + i));
        }

        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
    }
}

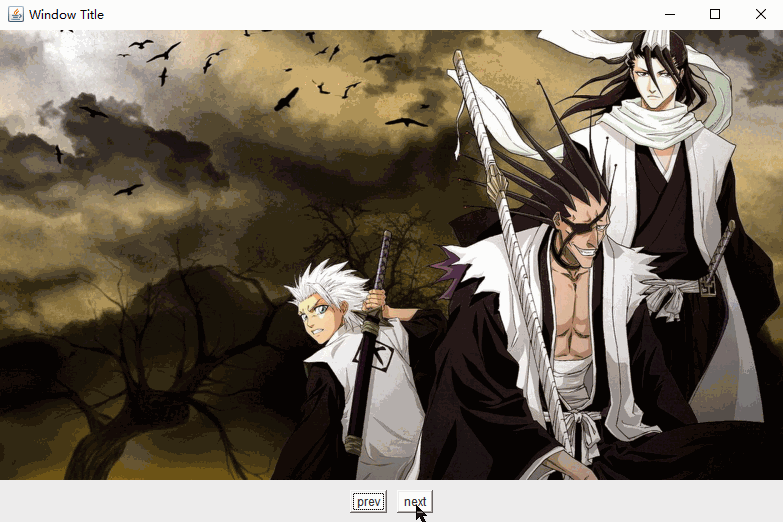

CardLayout

卡片布局

IDEA里打开的文件应该就是类似的布局实现的

import javax.imageio.ImageIO;
import javax.swing.*;
import java.awt.*;
import java.io.File;

public class CardLayoutTest {

    public static Image getImage(String path, int width, int height) throws Exception {
        Image image = ImageIO.read(new File(path));
        return image.getScaledInstance(width, height, Image.SCALE_SMOOTH);
    }

    public static void main(String[] args) throws Exception {
        JFrame frame = new JFrame("Window Title");

        // 设定窗口显示在屏幕正中间
        Dimension dimension = Toolkit.getDefaultToolkit().getScreenSize();
        double screenWidth = dimension.getWidth(), screenHeight = dimension.getHeight();
        int width = 800, height = width * 9 / 16;
        frame.setBounds((int) (screenWidth - width) / 2, (int) (screenHeight - height) / 2, width, height);

        Panel p1 = new Panel();
        CardLayout cardLayout = new CardLayout();
        p1.setLayout(cardLayout);

        JLabel l1 = new JLabel();
        l1.setIcon(new ImageIcon(getImage(".\\src\\test\\resources\\a694eff684db5b9cde79f3c1f2b84e95.jpg", width, height)));
        JLabel l2 = new JLabel();
        l2.setIcon(new ImageIcon(getImage(".\\src\\test\\resources\\ceb065932dbfe246d801a30a7750a5b3.jpeg", width, height)));
        JLabel l3 = new JLabel();
        l3.setIcon(new ImageIcon(getImage(".\\src\\test\\resources\\e9c0701b72b06b42feb61dd48463b657.jpeg", width, height)));
        JLabel l4 = new JLabel();
        l4.setIcon(new ImageIcon(getImage(".\\src\\test\\resources\\e71677350a3077dd3d0e38423d752f3f.jpeg", width, height)));
        JLabel l5 = new JLabel();
        l5.setIcon(new ImageIcon(getImage(".\\src\\test\\resources\\fb9a0e06eedbf6050719e27c3e0995e7.jpeg", width, height)));

        p1.add(l1);
        p1.add(l2);
        p1.add(l3);
        p1.add(l4);
        p1.add(l5);

        frame.add(p1);

        Button btn1 = new Button("prev");
        Button btn2 = new Button("next");

        btn1.addActionListener(listener -> cardLayout.previous(p1));
        btn2.addActionListener(listener -> cardLayout.next(p1));

        Panel p2 = new Panel();
        p2.setLayout(new FlowLayout(FlowLayout.CENTER, 10, 10));
        p2.add(btn1);
        p2.add(btn2);

        frame.add(p2, BorderLayout.SOUTH);

        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
    }
}

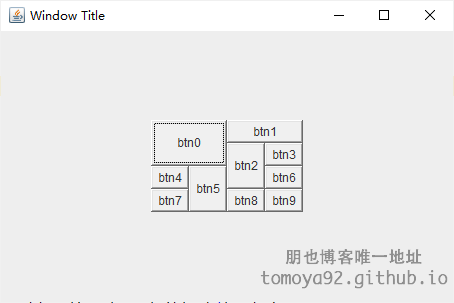

GridBagLayout

最复杂的一个布局，同时也是最灵活的布局

用这个布局方式要结合着 GridBagConstraints 类，用来对组件的位置进行约束

有以下几个参数要设置

fill：设置组件填充的方式，默认不填充，一般都是设置成BOTH，垂直水平都填充，这在给组件设置占几格位置时会有用
gridwidth: 设置当前组件占几格宽度，如果是0，则表示当前组件是当前行最后一个组件了，如果是-1表示是倒数第二个组件
gridheight: 设置当前组件占几格高度
gridx: 默认从0开始，表示当前行的第一个格子，往后依次递增

知道了这些参数的值，就可以来做个界面了

import javax.swing.*;
import java.awt.*;

public class GridBagLayoutTest {

    public static void main(String[] args) throws Exception {
        JFrame frame = new JFrame("Window Title");

        // 设定窗口显示在屏幕正中间
        Dimension dimension = Toolkit.getDefaultToolkit().getScreenSize();
        double screenWidth = dimension.getWidth(), screenHeight = dimension.getHeight();
        int width = 800, height = width * 9 / 16;
        frame.setBounds((int) (screenWidth - width) / 2, (int) (screenHeight - height) / 2, width, height);

        GridBagLayout gbl = new GridBagLayout();
        GridBagConstraints gbc = new GridBagConstraints();
        frame.setLayout(gbl);
        Button[] btns = new Button[10];
        for (int i = 0; i < btns.length; i++) {
            btns[i] = new Button("btn" + i);
            frame.add(btns[i]);
        }

        gbc.fill = GridBagConstraints.BOTH;
        gbc.gridwidth = 2;
        gbc.gridheight = 2;
        gbc.gridx = 0;
        gbl.setConstraints(btns[0], gbc);

        gbc.gridheight = 1;
        gbc.gridx = 2;
        gbc.gridwidth = GridBagConstraints.REMAINDER;
        gbl.setConstraints(btns[1], gbc);

        gbc.gridwidth = 1;
        gbc.gridheight = 2;
        gbc.gridx = 2;
        gbl.setConstraints(btns[2], gbc);

        gbc.gridwidth = GridBagConstraints.REMAINDER;
        gbc.gridheight = 1;
        gbc.gridx = 3;
        gbl.setConstraints(btns[3], gbc);

        gbc.gridwidth = 1;
        gbc.gridheight = 1;
        gbc.gridx = 0;
        gbl.setConstraints(btns[4], gbc);

        gbc.gridheight = 2;
        gbc.gridx = 1;
        gbl.setConstraints(btns[5], gbc);

        gbc.gridwidth = GridBagConstraints.REMAINDER;
        gbc.gridheight = 1;
        gbc.gridx = 3;
        gbl.setConstraints(btns[6], gbc);

        gbc.gridwidth = 1;
        gbc.gridheight = 1;
        gbc.gridx = 0;
        gbl.setConstraints(btns[7], gbc);

        gbc.gridx = 2;
        gbl.setConstraints(btns[8], gbc);

        gbc.gridx = 3;
        gbc.gridwidth = 1;
        gbc.gridheight = 1;
        gbl.setConstraints(btns[9], gbc);

        frame.pack();
        frame.setVisible(true);
        frame.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
    }
}
