朋也的博客 » 首页 » 文章
作者:朋也
日期:2019-04-03
类别:spring-boot学习笔记
版权声明:自由转载-非商用-非衍生-保持署名(创意共享3.0许可证)
一直对graphql挺好奇的,都说这货是前端使用json
来查询数据,后端只要把graphql风格的接口开发好了,schema定义的没问题,后面前端想怎么改数据结构就怎么改,完全不用后端操心了,今天折腾了一下,算是入门了,分享给大家
它不是框架,而是一种风格,类似于 restful 风格的接口一样,所以它有各种语言版本的实现,本篇文章用的就是java语言实现的
数据还是通过数据库查询的,无论你用的是hibernate还是mybatis,跟graphql都没有关系,该怎么查数据还怎么查就行
比如Book对象里有Author对象,显示书的作者信息,那么前端在调用时定义了Book对象里也要显示Author的信息,这个数据的嵌套加载是在后端通过代码实现的
首先查询出Book对象,然后根据Book对象里的authorId再查询一次Author数据,然后封装到Book对象里,这样前端拿到的json对象里就有两个对象的数据了
说白了,数据还是要通过orm框架查询的,只是将不同数据封装到一个对象里的这步被graphql-java这个框架做了
使用idea创建一个springboot项目,依赖选择一个 web 就可以了
pom.xml
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
另外引入两个graphql相关的依赖
原链文接:https://atjiu.github.io/2019/04/03/spring-boot-graphql/
<dependency>
<groupId>com.graphql-java</groupId>
<artifactId>graphql-java</artifactId>
<version>11.0</version>
</dependency>
<dependency>
<groupId>com.graphql-java</groupId>
<artifactId>graphql-java-spring-boot-starter-webmvc</artifactId>
<version>1.0</version>
</dependency>
最后再依赖一个guava,这个工具可以很方便的创建集合
<dependency>
<groupId>com.google.guava</groupId>
<artifactId>guava</artifactId>
<version>27.0-jre</version>
</dependency>
在项目的 resources 目录下创建文件 schema.graphqls
,然后写上下面配置
# 定义查询方法
type Query {
bookById(id: ID): Book
}
# 定义Book对象的结构
type Book {
id: ID
name: String
pageCount: Int
author: Author
category: Category
}
# 定义Category对象的结构
type Category {
id: ID
name: String
}
# 定义Author对象的结构
type Author {
id: ID
firstName: String
lastName: String
}
Book里有Author对象和Category两个关联对象
链原文接:https://atjiu.github.io/2019/04/03/spring-boot-graphql/
创建类 GraphQLProvider.java
@Component
public class GraphQLProvider {
private GraphQL graphQL;
@Autowired
GraphQLDataFetchers graphQLDataFetchers;
@Bean
public GraphQL graphQL() {
return graphQL;
}
@PostConstruct
public void init() throws IOException {
URL url = Resources.getResource("schema.graphqls");
String sdl = Resources.toString(url, Charsets.UTF_8);
// 构建schema
GraphQLSchema graphQLSchema = buildSchema(sdl);
this.graphQL = GraphQL.newGraphQL(graphQLSchema).build();
}
// 构建schema
private GraphQLSchema buildSchema(String sdl) {
}
}
在构建schema之间,先把数据获取方法都写好,到时候一块组装就可以了
创建 GraphQLDataFetchers.java
@Component
public class GraphQLDataFetchers {
// 初始化一些数据,这些数据可以从数据库里查询出来
// 创建books集合
private static List<Map<String, String>> books = Arrays.asList(
ImmutableMap.of("id", "book-1",
"name", "Harry Potter and the Philosopher's Stone",
"pageCount", "223",
"authorId", "author-1",
"categoryId", "category-2"),
ImmutableMap.of("id", "book-2",
"name", "Moby Dick",
"pageCount", "635",
"authorId", "author-2",
"categoryId", "category-1"),
ImmutableMap.of("id", "book-3",
"name", "Interview with the vampire",
"pageCount", "371",
"authorId", "author-3")
);
// 创建authors集合
private static List<Map<String, String>> authors = Arrays.asList(
ImmutableMap.of("id", "author-1",
"firstName", "Joanne",
"lastName", "Rowling"),
ImmutableMap.of("id", "author-2",
"firstName", "Herman",
"lastName", "Melville"),
ImmutableMap.of("id", "author-3",
"firstName", "Anne",
"lastName", "Rice")
);
// 创建categories集合
private static List<Map<String, String>> categories = Arrays.asList(
ImmutableMap.of("id", "category-1",
"name", "Programmer"),
ImmutableMap.of("id", "category-2",
"name", "Science"),
ImmutableMap.of("id", "category-3",
"name", "History")
);
// 根据bookId获取book对象数据
public DataFetcher getBookByIdDataFetcher() {
return dataFetchingEnvironment -> {
String bookId = dataFetchingEnvironment.getArgument("id");
return books
.stream()
.filter(book -> book.get("id").equals(bookId))
.findFirst()
.orElse(null);
};
}
// 从book对象里拿到authorId,然后再获取Author对象数据
public DataFetcher getAuthorDataFetcher() {
return dataFetchingEnvironment -> {
Map<String, String> book = dataFetchingEnvironment.getSource();
String authorId = book.get("authorId");
return authors
.stream()
.filter(author -> author.get("id").equals(authorId))
.findFirst()
.orElse(null);
};
}
// 从book对象里拿到categoryId,然后再获取Category对象数据
public DataFetcher getCategoryDataFetcher() {
return dataFetchingEnvironment -> {
Map<String, String> book = dataFetchingEnvironment.getSource();
String categoryId = book.get("categoryId");
return categories
.stream()
.filter(category -> category.get("id").equals(categoryId))
.findFirst()
.orElse(null);
};
}
}
原链文接:https://atjiu.github.io/2019/04/03/spring-boot-graphql/
上面初始化了schema,这一步来构建schema,通过在 schema.graphqls
里定义的 Query
里的方法来构建,代码如下
GraphQLProvider
// 通过从配置文件里加载的schema来构建GraphQLSchema
private GraphQLSchema buildSchema(String sdl) {
TypeDefinitionRegistry typeRegistry = new SchemaParser().parse(sdl);
RuntimeWiring runtimeWiring = buildWiring();
SchemaGenerator schemaGenerator = new SchemaGenerator();
return schemaGenerator.makeExecutableSchema(typeRegistry, runtimeWiring);
}
private RuntimeWiring buildWiring() {
return RuntimeWiring.newRuntimeWiring()
// 指定Query对象里定义的方法如何实现
.type(newTypeWiring("Query")
.dataFetcher("bookById", graphQLDataFetchers.getBookByIdDataFetcher()))
// 指定Book对象里定义的对象如何查询
.type(newTypeWiring("Book")
.dataFetcher("author", graphQLDataFetchers.getAuthorDataFetcher())
.dataFetcher("category", graphQLDataFetchers.getCategoryDataFetcher()))
.build();
}

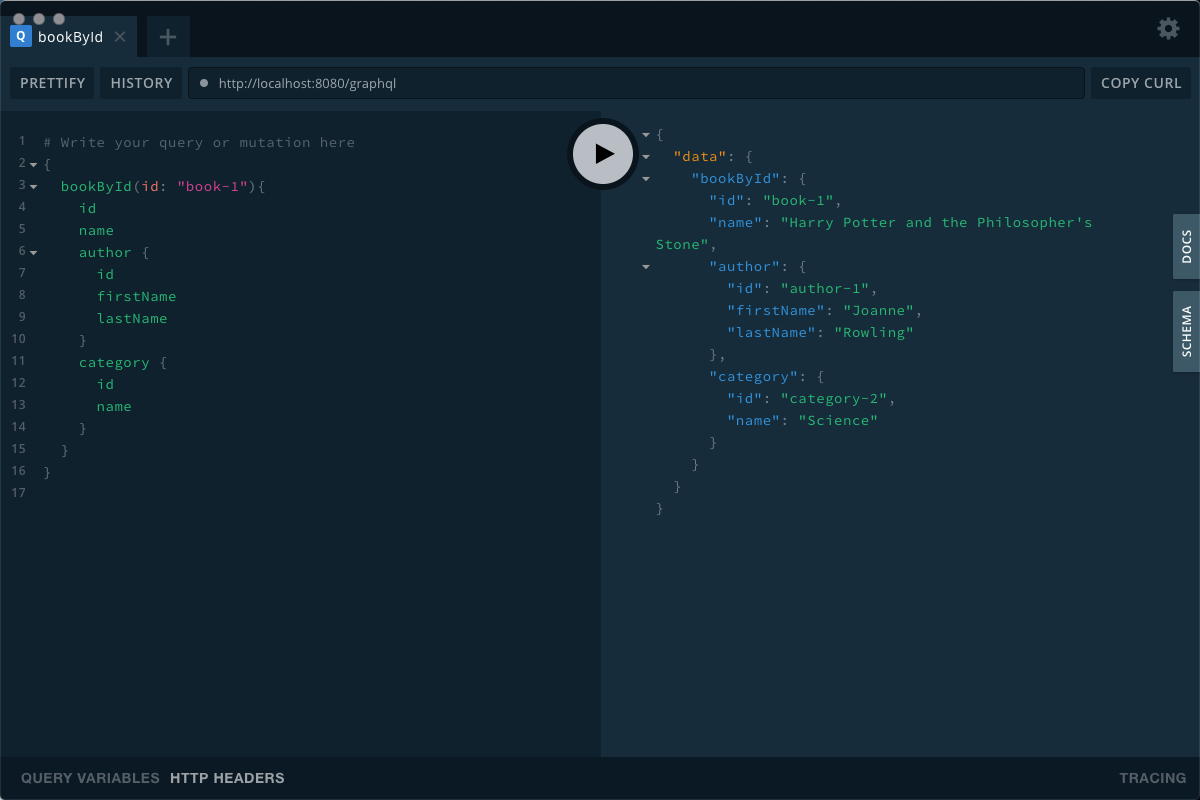

推荐安装一个工具 graphql-playground
开源地址:https://github.com/prisma/graphql-playground, 安装好后,打开,输入地址:http://localhost:8080,就可以进行测试了
这只是一篇graphql的入门文章,现在还有几个疑问:
继续折腾~
