作者:朋也
日期:2018-06-13
类别:swift学习笔记(纯代码)
版权声明:自由转载-非商用-非衍生-保持署名(创意共享3.0许可证)

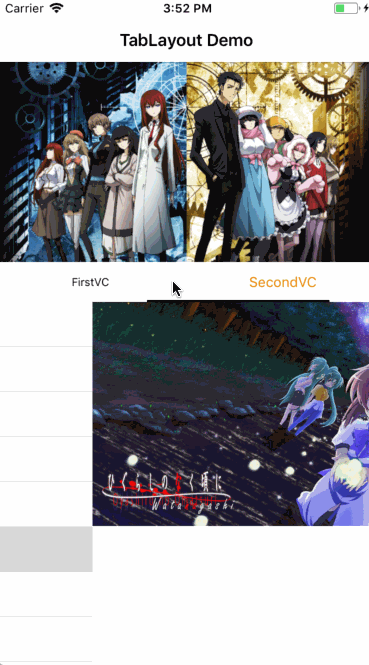

直接上图
接着上一篇博客代码开发的,地址:https://atjiu.github.io/2018/06/13/swift-tablayout-xlpagertabstrip/
将 ViewController
里的 TabLayout 相关代码抽出来
新建一个类 TabLayoutViewController.swift
import UIKit
import XLPagerTabStrip
class TabLayoutViewController: ButtonBarPagerTabStripViewController {
override func viewDidLoad() {
self.settings.style.buttonBarItemFont = .systemFont(ofSize: 14)
self.settings.style.buttonBarItemTitleColor = UIColor(red:0.86, green:0.72, blue:0.44, alpha:1.0)
self.settings.style.buttonBarHeight = 40
self.settings.style.buttonBarBackgroundColor = UIColor.white
self.settings.style.buttonBarItemBackgroundColor = UIColor.white
self.settings.style.selectedBarHeight = 2
changeCurrentIndexProgressive = { (oldCell: ButtonBarViewCell?, newCell: ButtonBarViewCell?, progressPercentage: CGFloat, changeCurrentIndex: Bool, animated: Bool) -> Void in
guard changeCurrentIndex == true else { return }
oldCell?.label.textColor = .black
newCell?.label.textColor = .orange
if animated {
UIView.animate(withDuration: 0.1, animations: { () -> Void in
newCell?.transform = CGAffineTransform(scaleX: 1.0, y: 1.0)
oldCell?.transform = CGAffineTransform(scaleX: 0.8, y: 0.8)
})
}
else {
newCell?.transform = CGAffineTransform(scaleX: 1.0, y: 1.0)
oldCell?.transform = CGAffineTransform(scaleX: 0.8, y: 0.8)
}
}
super.viewDidLoad()
}
override func viewControllers(for pagerTabStripController: PagerTabStripViewController) -> [UIViewController] {
return [FirstViewController(), SecondViewController()]
}
override func didReceiveMemoryWarning() {
super.didReceiveMemoryWarning()
}
}
在 ViewController
里添加一个 UIImageView
和初始化 TabLayoutViewController
,然后将图片视图添加到ViewController的子视图里
TabLayoutViewController是一个控制器,它的添加方法有些特殊,先用 self.addChildViewController()
方法将控制器添加到当前控制器里,然后再用 self.view.addSubView()
方法把控制器的视图添加到当前控制器的子视图里,代码如下
import UIKit
import XLPagerTabStrip
import SnapKit
import Kingfisher
class ViewController: UIViewController {
let url = "https://www.2ddog.com/wp-content/uploads/2018/04/cfcd208495d565ef66e7dff9f98764da.jpg"
override func viewDidLoad() {
super.viewDidLoad()
self.title = "TabLayout Demo"
self.view.backgroundColor = .white
self.navigationController?.navigationBar.isTranslucent = false
let image = UIImageView()
image.contentMode = .scaleAspectFill
self.view.addSubview(image)
let tabLayout = TabLayoutViewController()
//将控制器加入到当前控制器里
self.addChildViewController(tabLayout)
//将控制器的视图加入到当前控制器的子视图中
self.view.addSubview(tabLayout.view)
// 添加布局
image.snp.makeConstraints { (make) in
make.top.left.right.equalTo(0)
make.height.equalTo(200)
}
tabLayout.view.snp.makeConstraints { (make) in
make.top.equalTo(image.snp.bottom)
make.left.right.bottom.equalTo(0)
}
// 加载网络图片
image.kf.indicatorType = .activity
image.kf.setImage(with: URL(string: url))
}
override func didReceiveMemoryWarning() {
super.didReceiveMemoryWarning()
// Dispose of any resources that can be recreated.
}
}
运行起来就是上面图片中的效果了,快试试吧
